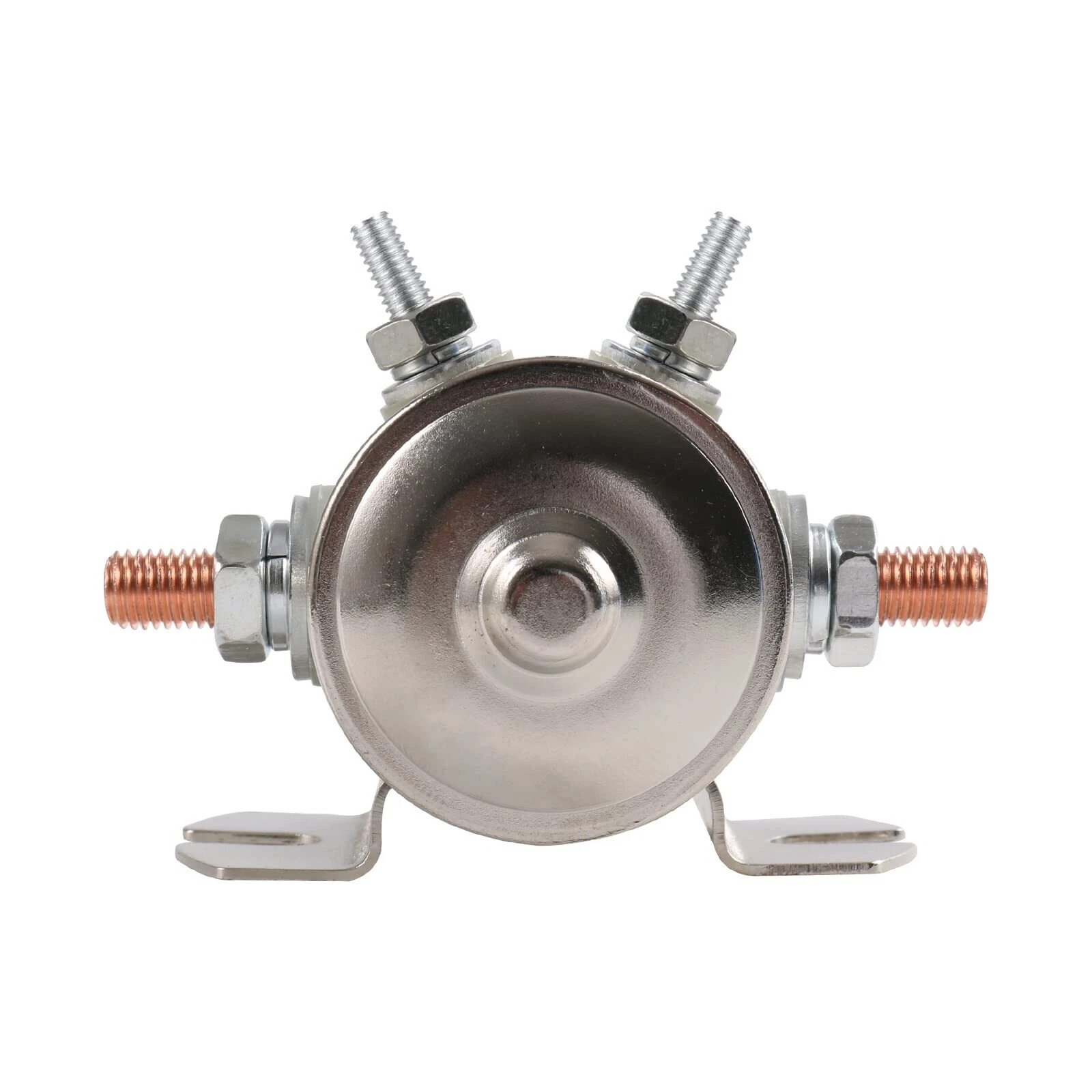

12 Volt Duty Solenoid Relay 4-terminal Max 300a For Golf Carts

Details

Description

• Contact Type: Spst
• Current Rating: 300 Amps
• Mounting Type: Bracket Mount
• Brand: LDMINDA
• Operation Mode: Off
• Contact Type: ‎Spst
• Current Rating: ‎300 Amps
• Mounting Type: ‎Bracket Mount
• Brand: ‎LDMINDA
• Operation Mode: ‎Off
• Wattage: ‎10.2 watts
• Coil Resistance: ‎14 Ohms
• Coil Voltage: ‎12 Volts
• Minimum Switching Voltage: ‎12 Volts (DC)
• Specification Met: ‎Electromagnetic
• Manufacturer: ‎LDMINDA
• Model: ‎Widely used in ships, winches, military vehicles, hydraulic control units, golf carts, factory machines
• Item Weight: ‎11.3 ounces
• Package Dimensions: ‎3.7 x 3.03 x 2.87 inches
• Country of Origin: ‎China
• Item model number: ‎12V 4 Terminal Max 300A
• Exterior: ‎Nickel-Plating
• Manufacturer Part Number: ‎3635820 ,218
• Special Features: ‎4 Terminal, Nickel-Plating, Max 300A, 12VDC, 12 Volt
• Date First Available: September 7, 2022

• Specification4-pole battery isolation solenoid valve: Voltage: 12VDC; Resistance: 14; Capacity: 10.2W; Maximum transient flash current: 300Amp; but Working Current recommend under 150 Amp,Bracket:Straight;Bracket mounting:Holes 5/16 x 19/32 2-13/64 on center
• Materials4 Terminal Max 300A 12 Volt With 2 Copper Point Duty Solenoid Relay ,The The electromagnetic relay adopts high-quality components, Coil Roll is using 180C copper wire, Cover is Nickel-Plating, Meet Environmental Plating Requirment.The Nickel-Plating outer layer and the inside of the canned coil, suitable for use in any environment.
• Replaces Parts NumberThis Duty Solenoid Relay Replacement For 70-111224, 3635820, 1114208, 1114218, 1114223, 1114534, 1114547
• Function good saver to your battery ( Max Flash Current 300A). Copper Terminal Contactor Improve Electricity - Reduce The Power Loss,Reach Transient Current 300A; Max Transient current can be 300A, but Continuous Working Current recommend under 150 Amp. Continuous Work is 5 minutes, must cool down in 20 seconds.
• NoteUsually with 80Amp as working current, need Break off 20 seconds after 5 minutes Continuous working.
